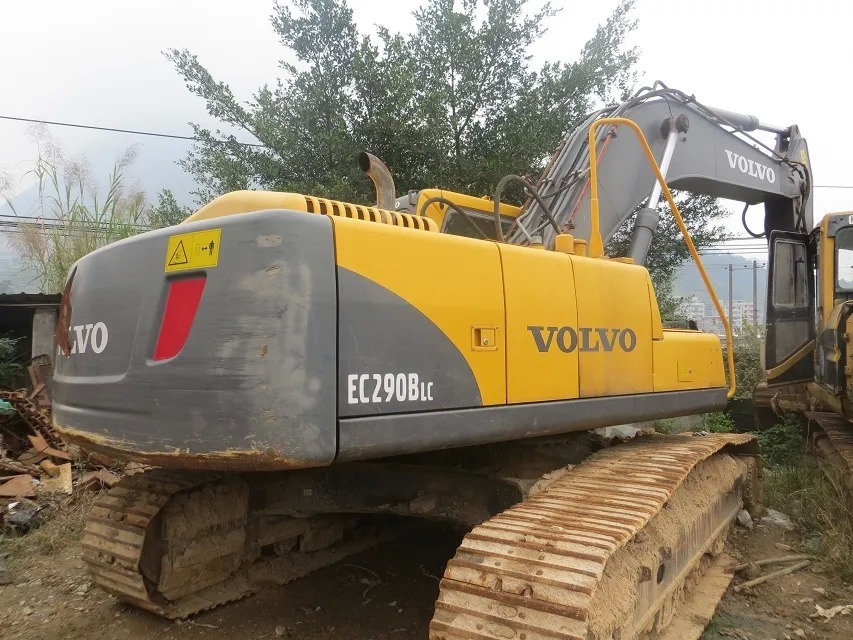

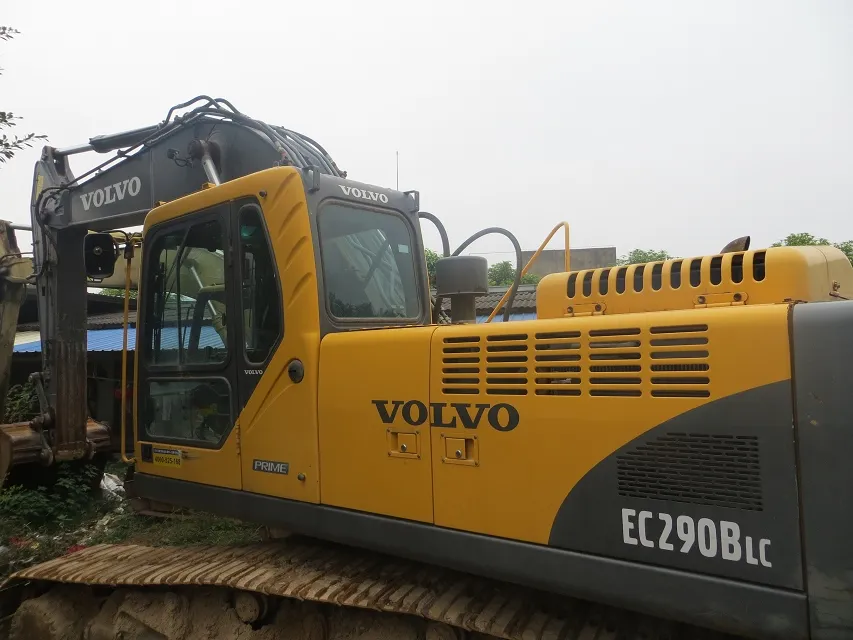

Volvo EC290blc Excavator
| Model |
EC290blc |
| Condition |
Used |
| Year |
2014-2018 |
| Moving Type |
Crawler Excavator |
| Brand |
Volvo |
| Working Weight |
29900kg |
| Bucket capacity |
1.3m3 |
| Origin |
korea |
Other DetailsParameter configuration of Volvo ec290blc excavator
Specifications
Operating weight (kg) 28500-29900
Bucket capacity (M3) 1.3
Boom length (mm) 6200 (heavy arm)
Stick length (mm) 3050
Tonnage (ton) 29
Bucket backhoe
performance
Rotation speed (RPM) 10.2
Walking speed (km / h) 3.3 / 5.2
Climbing capacity (%) 70% (35 °)
Grounding specific pressure (kPa) 54.1 (when the counterweight is 5.4 tons)
Bucket digging force (KN) 181.4 (standard mode) / 198.4 (afterburner mode)
Stick digging force (KN) 127.6 (standard mode) / 139.5 (afterburner mode)
Maximum tractive force (KN) 230.5
dynamic system

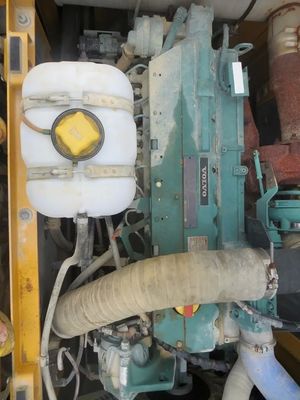

Engine model Volvo d7d
Rated power (kW / RPM) 153 / 1900
Displacement (L) 7.1
Number of cylinders 6
Cylinder diameter × stroke (mm) 108 × 130
Cooling mode water cooling
Working mode: turbocharging; electronically controlled direct injection; charge air cooler
Hydraulic system
Main pump type variable axial piston pump × 2 + gear pump
Maximum flow of main pump (L / min) 250 × 2 + 19
Walking hydraulic motor type variable axial piston motor × 2
Rotary hydraulic motor type axial piston hydraulic motor (with mechanical brake)
Working hydraulic circuit (MPA) 31.4 / 34.3
Traveling hydraulic circuit (MPA) 34.3
Slewing hydraulic circuit (MPA) 26.5
Control hydraulic circuit (MPA) 3.9
Boom cylinder number × cylinder diameter × stroke (mm) 2-140 × 1480
Stick cylinder - number × diameter × stroke (mm) 1-150 × 1745
Bucket cylinder number × cylinder diameter × stroke (mm) 1-140 × 1140
Oil capacity
Fuel tank (L) 470
Hydraulic tank (L) 195
Hydraulic system (L) 400
Engine oil change quantity (L) 32
Coolant (L) 44
Body size
Total transport length (mm) 10400
Total transport width (mm) 3190
Total height of transportation (mm) 3290 (total height of boom)
Full height of cab (mm) 3030
Ground clearance of counterweight (mm) 1145
Track grounding length (mm) 4015
Total track length (mm) 4870
Track shoe width (mm): three teeth 600 / 700 / 800 / 900; two teeth 700
Total track width (mm) 3190
Track gauge (mm) 2590
Minimum ground clearance (mm) 480
Minimum turning radius of front working device (mm) 4180
Rear turning radius (mm) 3050
Scope of work
Maximum excavation radius (mm) 10690
Maximum excavation radius of parking surface (mm) 10490
Maximum excavation depth (mm) 7320
Maximum excavation height (mm) 10040
Maximum unloading height (mm) 7050
Maximum vertical excavation depth (mm) 6200
Maximum effective excavation depth (mm) 7140
