Product Details:
Payment & Shipping Terms:
Contact Now
Chat Now
|
Rated Loading Capacity: | 4t,6T,3ton,12t,1.5t~10T | Working Temperature: | -20℃ To 40℃ |
---|---|---|---|
Year Of Manufacture: | Varies Depending On Model | Availability: | Varies Depending On Seller |
Condition: | Used | Shipmnet Way: | Air Sea |
Application: | Building Construction | Usage: | Construction |
Full Extension Jib: | 90m | Key Word: | XCMG Q7022-16 Used Tower Crane |
Boom Length: | Varies Depending On Model | Control System: | PLC |
Maximum Lifting Capacity: | 10 Tons | Appy To: | Building |
Shipment Way: | Air Sea | ||
Highlight: | 20 ton used Caterpillar excavator,Cat 320d2 crawler excavator,used Cat 320 excavator with C7.1 engine |

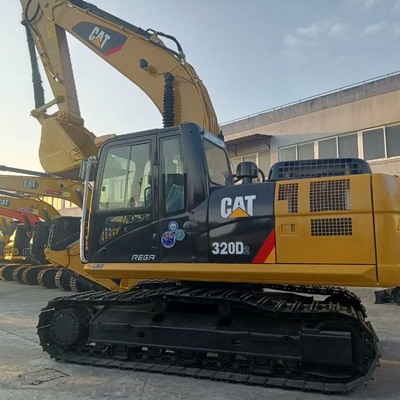

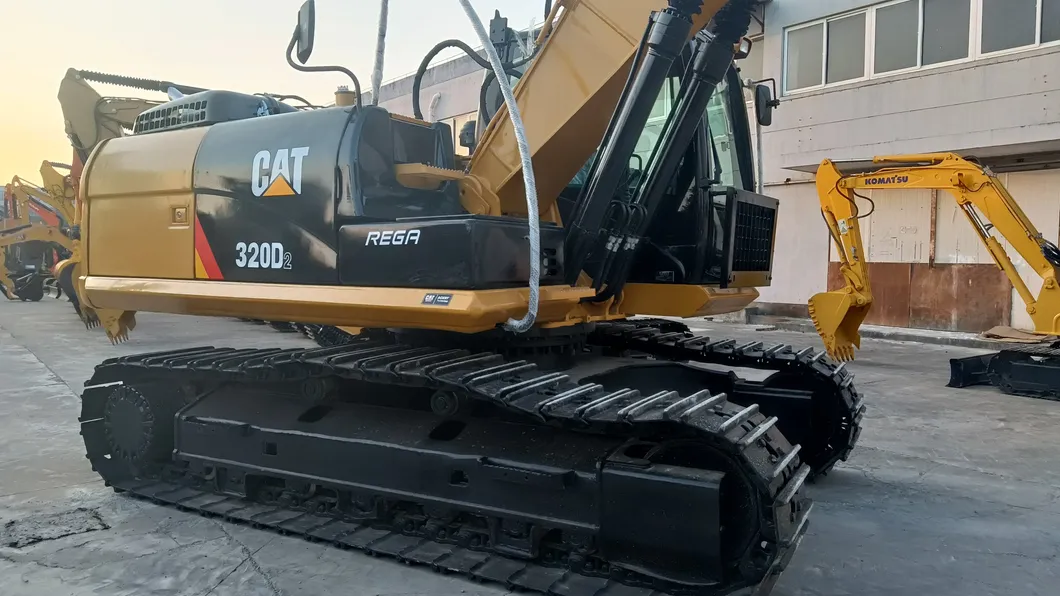

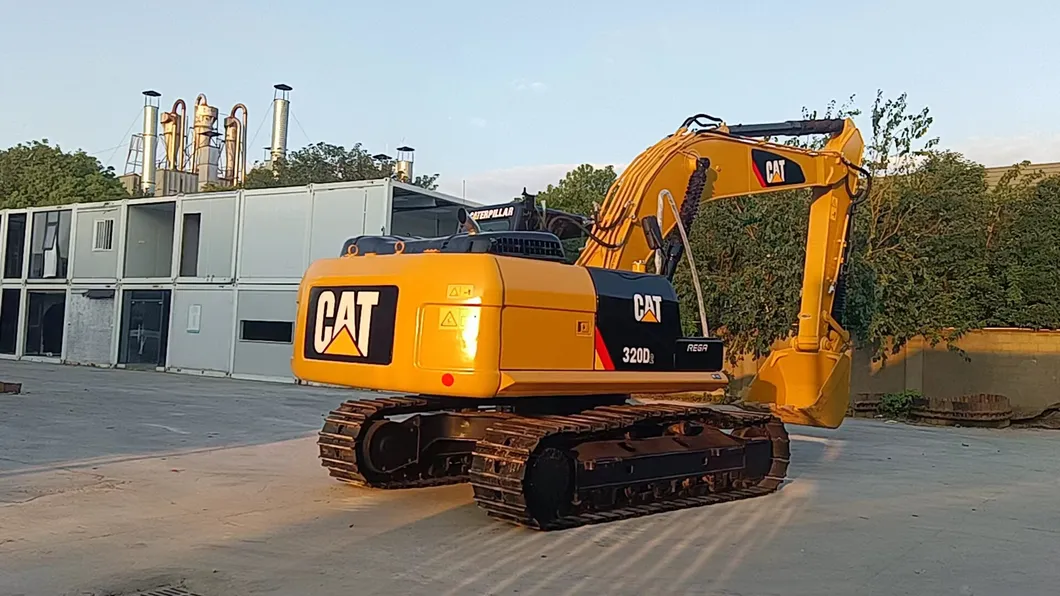

20 Ton CAT 320 Caterpillar Excavator CAT 320D2 Used Crawler Excavator 320B/320C/320D/320D2 With C7.1 Engine
Specifications |
|
Bucket |
Backhoe |
Tonnage (tons) |
20 |
Machine operating weight (kg) |
21100 |
Bucket capacity (m³) |
1 |
Boom length (mm) |
5700 |
Arm length (mm) |
2500/2900 |
Performance |
|
Slewing speed (rpm) |
10.9 |
Slewing torque (Nm) |
61.8 |
Travel speed (km/h) |
5.4 |
Gradability (%) |
70/35° |
Bucket digging force (kN) |
125 |
Arm digging force (kN) |
104 |
Maximum traction force (kN) |
205 |
Power system |
|

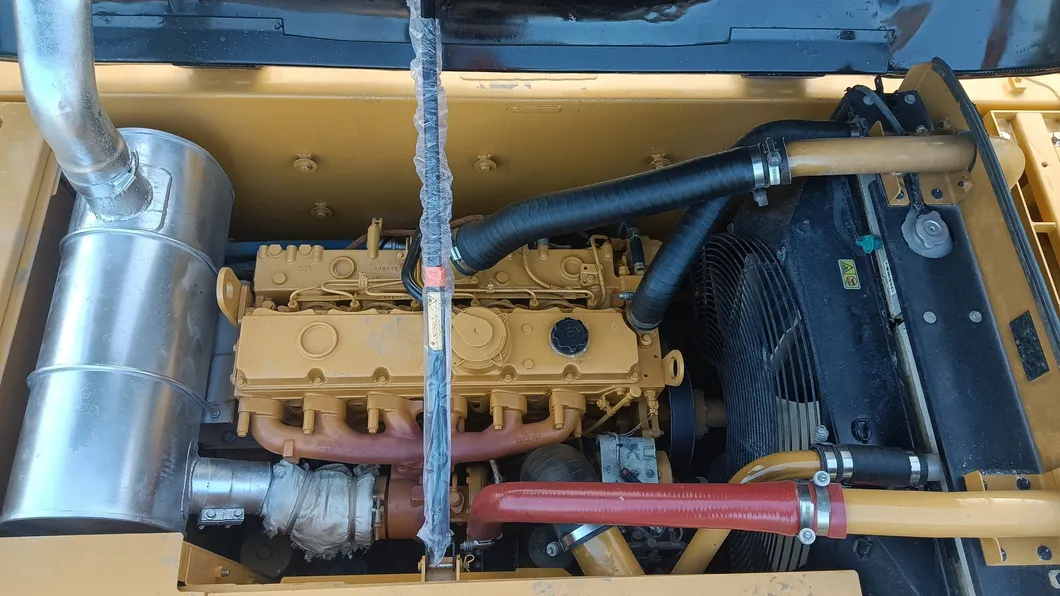

Engine model |
Cat C7.1 |
Rated power (kw/rpm) |
112/1800 |
Displacement (L) |
7.01 |
Number of cylinders (pieces) |
6 |
Cylinder diameter × stroke (mm) |
105 × 135 |
Hydraulic system |
|
Maximum flow of main pump (l/min) |
404 |
Pilot pump flow (L/min) |
32.4 |
Pilot oil circuit (MPa) |
39 |
Working hydraulic oil circuit (Mpa) |
34.3 |
Travel hydraulic circuit (Mpa) |
35 |
Swing hydraulic circuit (Mpa) |
25 |
Main overflow setting pressure (Mpa) |
35 |
Oil capacity |
|
Fuel tank (L) |
410 |
Hydraulic oil tank (L) |
138 |
Hydraulic system (L) |
260 |
Engine oil replacement amount (L) |
22 |
Coolant (L ) |
25 |
Main dimensions |
|
Total length for transport (mm) |
9460 |
Total width for transport (mm) |
2800 |
Total height for transport (mm) |
3030 |
Total height of cab (mm) |
2950 |
Onboard width (mm) |
2800 |
Track ground length (mm) |
3270 |
Total length of track (mm) |
4080 |
Track shoe width (mm) |
600/700/790 |
Total track width (mm) |
2800 |
Track gauge (mm) |
2200 |
Minimum ground clearance (mm ) |
450 |
Counterweight ground clearance (mm) |
1020 |
Rear end turning radius (mm ) |
2750 |
Operating range |
|
Maximum digging depth (mm) |
6720 |
Maximum digging height (mm) |
9490 |
Maximum unloading height (mm) |
6490 |
Maximum vertical digging depth (mm) |
5690 |
Maximum effective digging depth (mm) |
6380 |
