10 Ton 70m Zoomlion Hammerhead Tower Crane

Certification
China Sichuan Deyike New Construction Development Co., Ltd. certification
China Sichuan Deyike New Construction Development Co., Ltd. certification
I'm Online Chat Now

10 Ton 70m Zoomlion Hammerhead Tower Crane

10 Ton 70m Zoomlion Hammerhead Tower Crane
10 Ton 70m Zoomlion Hammerhead Tower Crane 10 Ton 70m Zoomlion Hammerhead Tower Crane 10 Ton 70m Zoomlion Hammerhead Tower Crane 10 Ton 70m Zoomlion Hammerhead Tower Crane 10 Ton 70m Zoomlion Hammerhead Tower Crane 10 Ton 70m Zoomlion Hammerhead Tower Crane

Large Image :  10 Ton 70m Zoomlion Hammerhead Tower Crane

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$90,000.00 - 130,000.00
Payment Terms: T/T
Contact Now Chat Now

10 Ton 70m Zoomlion Hammerhead Tower Crane

Description
Maximum Lifting Height: 120.5m Boom Support Method: Flat-head Tower Crane
Boom Length: Varies Depending On Model Advantages: High Quality
Installation Method: Stationary Power Supply: 380V/50Hz
Usage: Used Hoisting Speed: Varies Depending On Model
Working Temperature: -20℃ To 40℃ Max Load: 6tons
Wind Resistance: ≤10 Level Location: Global
Mast Section Dimension: 1.6m X 1.6m X 3m Shipmnet Way: Air Sea
Key Word: Used ZOOMLION 6010-8 Tower Crane
Highlight:

10 ton Zoomlion tower crane

,

70m hammerhead tower crane

,

used Zoomlion construction crane

Basic Info.

Model NO.
TC7013-10
Maximum Lifting Height
50-100m
Maximum Lifting Weight
10t
Installation
Overall Rapid Disassembly
Moving Type
Fixed
Type
Top-Slewing Crane
Transport Package
by Sea
Trademark
ZOOMLION
Origin
China
HS Code
84262000
Production Capacity
500/Month

Product Description

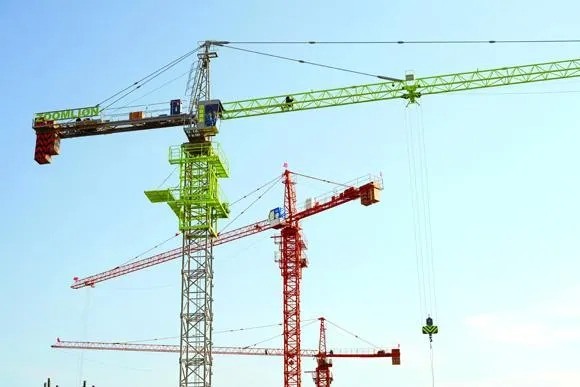

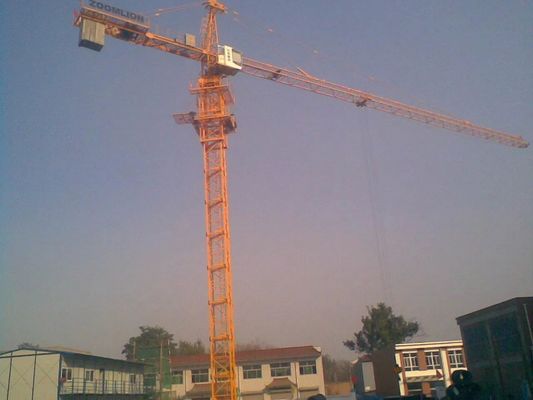

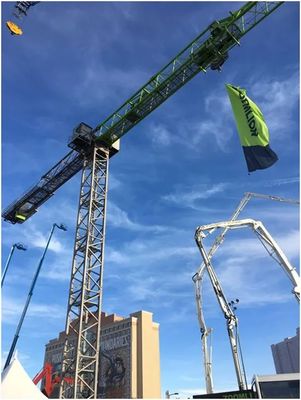

10 Ton 70m Zoomlion Hammerhead Tower Crane Factory Price


1. Performance parameters of TC7013-10: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 70m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
• Max. lifting capacity 10t;
• Hoisting capacity at jib tip: 1.3t;
• Max. lifting moment 160t.m;
• Hoisting mechanism: H60FP25-540P; power:60 kW; rope capacity: 540m;
• Slewing mechanism: ZRCV145.B1.130; power: 2×145 N.m
• Trolleying mechanism: BP55B; power: 5.5 kW.


2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
• The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.



Rated liftingmoment(t.m) 160
 Max.liftingheight(m) Free-standingstationarycrane 60
Anchoredcrane 200
Workingradius(m) Max.workingradius 70
Min.workingradius 2.5
Max.liftingcapacity(t) 10
Hoistingmechanism  Ropefall α=2 α=4
Speed(m/min) 120 60 60 30
Liftingweight(t) 2.5 5 5 10
Power(kW) 55/55
Slewingmechanism Speed(m/min) 0~0.6
Power(N.m) 2×145
Trolleyingmechanism Speed(m/min) 0~55
Power(kW) 5.5
