New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16

New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16
New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16

Large Image :  New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$70,000.00 - 100,000.00
Payment Terms: T/T
Contact Now Chat Now

New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16

Description
Application: Buliding Mast Section Dimension: 1.6m X 1.6m X 3m
Payment: TT Color: Customer's Request
Safety Devices: Overload Protection, Anemometer, Height Limiter, Slewing Limiter Warranty: 1 Year
Packing: Standard Type: 7052
Free Standing Height: 60m Payment Way: TT
Colour: Yellow Slewing Speed: 0-0.7 R/min
Appy To: Building Serive: 24 On Line
Shipmnet Way: Air Sea
Highlight:

Zoomlion Hammerhead tower crane

,

16t TC7525-16 foundation crane

,

used Zoomlion tower crane foundation

Basic Info.

Model NO.
TC7525-16
Maximum Lifting Height
51.3m
Maximum Lifting Weight
16t
Rated Lifting Moment
310 T.M
Applicable Industries
Construction Works
Rated Loading Capacity
16t
After-Sales Service Provided
Video Technical Support, Field Installation
Application
Building Construction
Warranty
1 Year
Max. Lifting Height
51.3m
Feature
Tower Crane
Transport Package
Standarded Packing for Export
Specification
CE ISO
Trademark
Zoomlion
Origin
Hunan, China
Production Capacity
20 Unit/Units Per Month

Product Description

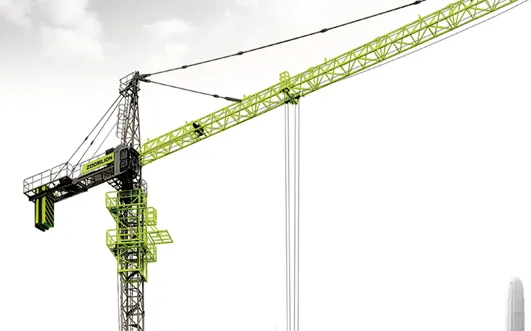

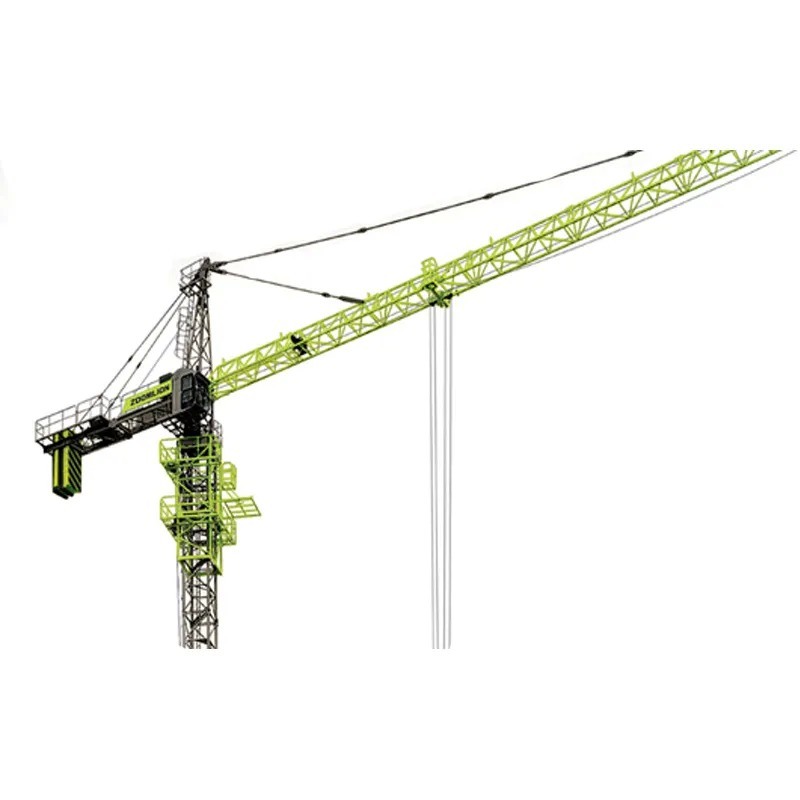

New ZOOMLION Hammerhead Erect Tower Crane Foundation 16t TC7525-16

New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 0

Product Description

1. Performance parameters of TC7525-16: performance parameters and technical indexes reach both domestic and international advanced level.
Max. jib length: 75m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 40 meters.
Max. lifting capacity 16t;
Max. hoisting capacity at jib tip: 2.5t;
Max. lifting moment 310 t.m;
Max. free-standing height: 51.3m; Max. working height of anchored crane: 240.3m;
Hoisting mechanism: QP1675; power: 60kW; rope capacity: 600m;
Slewing mechanism: HVV145B1.130A, HVV145B2.130A, power: 2×7.5kW
Trolleying mechanism: BP110A; power: 11 kW.


2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
The complete machine adopts internationally well-received beautiful shape;
The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.

New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 1

Main Parameter

New Zoomlion Hammerhead Erect Tower Crane Foundation 16t Tc7525-16 2

 Ratedliftingmoment(kN.m) 2500
 Max.liftingheight(m) Free-standingstationarycrane 51.3
Anchoredcrane 240
Workingradius(m) Max.workingradius 70
Min.workingradius 3.75
Max.liftingcapacity(t) 16
Hoistingmechanism  Ropefall α=2 α=4
Speed(m/min) 37.5 75 18.75 37.5
Liftingweight(t) 8 4 16 8
Power(kW) 60
Slewingmechanism Speed(m/min) 0~0.6
Power(kW) 2×7.5
Trolleyingmechanism Speed(r/min) 0~100
Power(kW) 11
