Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price

Certification
China Sichuan Deyike New Construction Development Co., Ltd. certification
China Sichuan Deyike New Construction Development Co., Ltd. certification
I'm Online Chat Now

Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price

Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price
Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price

Large Image :  Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$60,000.00 - 100,000.00
Payment Terms: T/T
Contact Now Chat Now

Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price

Description
Maximum Load Capacity: 10 Tons Operating Weight: 80 Tons
Luffing Speed: 0-0.4 M/min Shipmnet Way: Air Sea
Application: Buliding Power Supply: 380V/50Hz
Keyword: Used Tower Crane Max. Lifting Capacity: Various Capacities Available
Boom Support Method: Flat-head Tower Crane Delivery Date: With In 35 Days
Model: Various Models Available Key Word: Zoomlion Second Hand 6012-6 Tower Cranes
Installation Method: Stationary Country: China
Maximum Lifting Height: 120.5m
Highlight:

Zoomlion 10t hydraulic tower crane

,

70m jib length flat-top crane

,

used T7015-10e tower crane

Basic Info.

Model NO.
T7015-10E
Maximum Lifting Height
60m
Maximum Lifting Weight
10t
Rated Lifting Moment
1600 T.M
Applicable Industries
Construction Works
Rated Loading Capacity
10t
After-Sales Service Provided
Video Technical Support, Field Installation
Application
Building Construction
Warranty
1 Year
Max. Lifting Height
60m
Feature
Tower Crane
Transport Package
Standarded Packing for Export
Specification
CE ISO
Trademark
Zoomlion
Origin
Hunan, China
Production Capacity
20 Unit/Units Per Month

Product Description

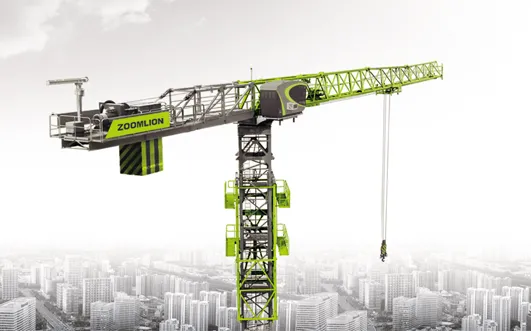

Hot ZOOMLION 10t 70m Jib length Flat-top Hydraulic Tower Crane T7015-10E Cheap Price

Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price 0

Product Description

1. Performance parameters of TCT7015-10E: performance parameters and technical indexes reach both domestic and international advanced level.
Max. jib length: 70m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
Max. lifting capacity 10t;
Max. hoisting capacity at jib tip: 5.53t;
Max. lifting moment 1600 t.m;
Max. free-standing height: 60m; Max. working height of anchored crane: 200m;
Hoisting mechanism: QE1080D; power: 37/37 kW; rope capacity: 540 m;
Slewing mechanism: RCV145.B1.130, RCV145.B2.130, power: 2×145N.m
Trolleying mechanism: BP55B; power: 5.5 kW.
Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane.


2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
The complete machine adopts internationally well-received beautiful shape;
The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.

Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price 1

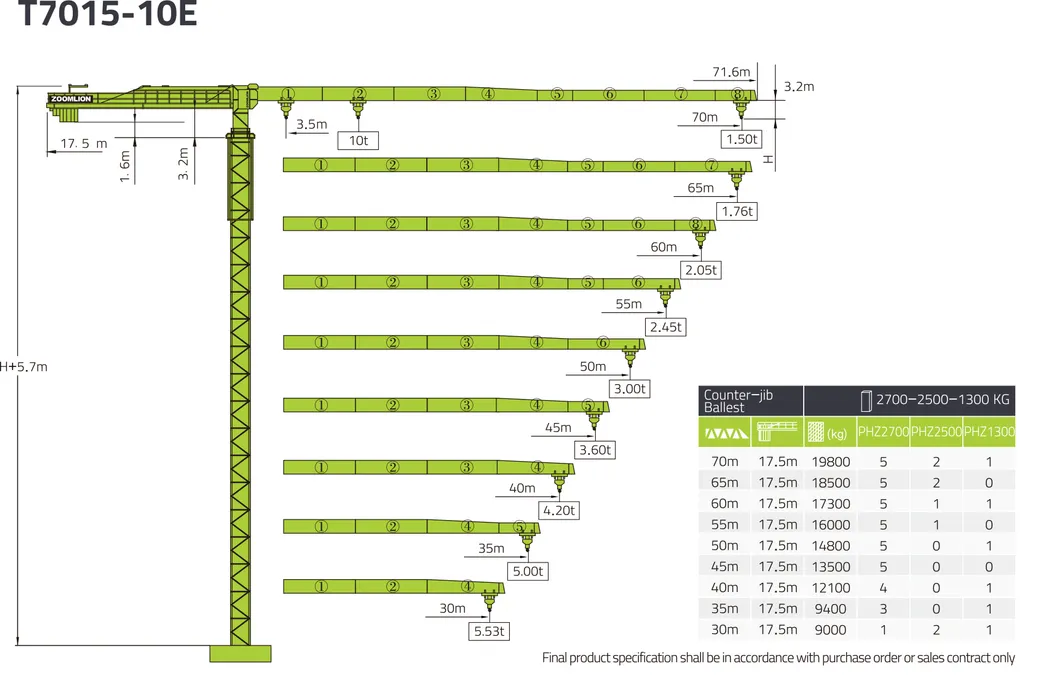

Main Parameter

Hot Zoomlion 10t 70m Jib Length Flat-Top Hydraulic Tower Crane T7015-10e Cheap Price 2


 Ratedliftingmoment(kN.m) 1600
 Max.liftingheight(m) Free-standingstationarycrane 60
Anchoredcrane 200
Workingradius(m) Max.workingradius 75
Min.workingradius 3.5
Max.liftingcapacity(t) 10
Hoistingmechanism  Ropefall α=2 α=4
Speed(m/min) 80 40 40 20
Liftingweight(t) 2.5 5 5 10
Power(kW) 37/37
Slewingmechanism Speed(m/min) 0~0.6
Power(kW) 2×145N.m
Trolleyingmechanism Speed(m/min) 0~55
Power(kW) 5.5
