Dongfeng 4x2 Water Sprinkler Truck Green And Environmentally Friendly Water Truck
Characteristics :
1, Dongfeng 4x2 Water Sprinkler Truck truckHigh-pressure pumping system with intelligent spraying devices, supporting multiple modes (front, rear, side, high-altitude), with a maximum range of 28 meters.
2, Dongfeng 4x2 Water Sprinkler Truck 4x2 drive configuration ensures lightweight and agility, suitable for complex terrains (e.g., construction sites, mountain roads).
3, Dongfeng 4x2 Water Sprinkler Truck tank capacities range from 3m³ to 30m³, adaptable to various scenarios.
4, Dongfeng 4x2 Water Sprinkler Truck Integrated automated control panels for real-time monitoring of water levels, pressure, and vehicle status..
Application :
1, Dongfeng 4x2 Water Sprinkler Truck Urban cleaning (road washing, dust suppression, green space irrigation).
2, Dongfeng 4x2 Water Sprinkler Truck Street cleaning, waste compacting, and sewer flushing.
3, Dongfeng 4x2 Water Sprinkler Truck Emergency services (disaster relief, water delivery in drought-prone areas).
Advantage:
1, Dongfeng 4x2 Water Sprinkler Truck Multi-functional design for watering, pesticide spraying, firefighting, etc.
2, Dongfeng 4x2 Water Sprinkler Truck Cost-effective 4x2 configuration with low maintenance costs, ideal for small-to-medium projects..
3, Dongfeng 4x2 Water Sprinkler Truck Safety features include anti-rollover systems, backup radar, and emergency fire extinguishers.
Packing :
Generally, we will transport them directly in containers.
Technology :
| Vehicle model |
JDH5040 |
| Chassis model |
EQ1045 |
| Engine power |
110Ps |
| Wheelbase |
3308mm |
| Other chassis configuration |
2.1 tons, rear axle 3.5 tons, 00R16 wire tire |
| Vehicle size |
5995*2000*2350mm |
| Curb Weight |
3800kg |
| Total mass |
4495kg |
| Effective volume of water tank |
5000L |
Water gun range
Flushing width |
25m
Greater than or equal to 20m |
| Sprinkler width |
Greater than or equal to 12m |
| Tank material/thickness |
Q235B Carbon Steel/4mm |
| Head material/thickness |
Q235B Carbon Steel/5mm |
| Pump Model |
40/50 |
| Self-priming height |
6.5m |
| Pipeline |
Galvanized steel pipe/paint |

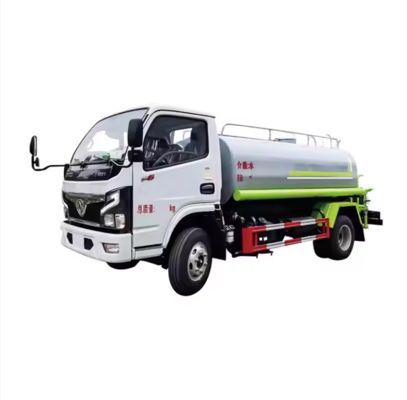

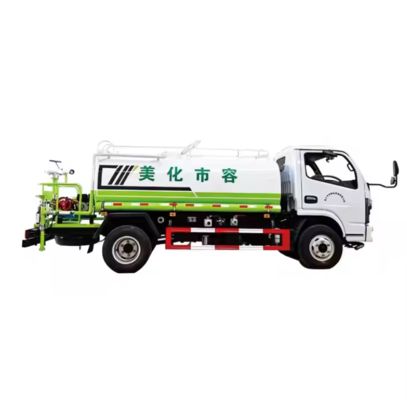

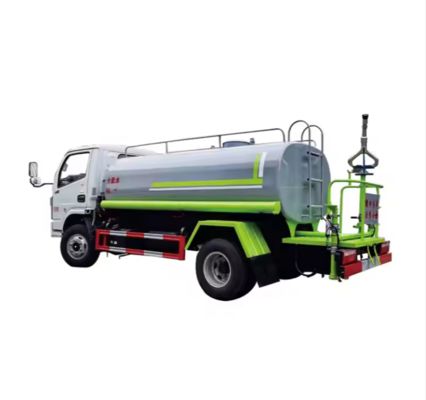

Picture:
