Production Name: | XCMG T7527A-18S Used Tower Crane Used Lifting Construction Cranes | Brand: | XCMG T7527A-18S Used Tower Crane |
---|---|---|---|
Model: | T7527A-18S | Appy To: | Building |
Moq: | 1 | Test Report: | Provide |
Country: | China | Shipment Way: | Air And Sea |
Highlight: | XCMG T7527A-18S Used Lifting Tower Crane,Used Tower Crane Equipment 18ton Capacity |
XCMG T7527 A-18 S Used Tower Crane Used Lifting Construction Cranes
Characteristics :
1, XCMG T7527A-18S Used Tower Crane Proprietary intelligent control technology for lifting brakes extends brake life by 3× and motor life by 2×, with real-time status monitoring.
2, XCMG T7527A-18S Used Tower Crane Uses Schneider electric switches (IP65 dust/water resistance) and alloy copper bolts (anti-corrosion for 10+ years).
3, XCMG T7527A-18S Used Tower Crane Dual protection via weight/moment limiters with 500,000+ operation cycles.
Application :
1, XCMG T7527A-18S Used Tower Crane It is widely used in the main structure construction of medium and high-rise residential buildings, commercial complexes and other buildings, such as the hoisting of steel bars, formwork and concrete components.
2, XCMG T7527A-18S Used Tower Crane It is suitable for interior climbing operations in narrow Spaces or high-rise buildings, such as the Jakarta Oasis Twin Towers project (the tallest building in Indonesia).
3, XCMG T7527A-18S Used Tower Crane It can be used for the hoisting of components of large-scale infrastructure such as factories, Bridges and DAMS.
Advantage:
1, XCMG T7527A-18S Used Tower Crane some models adopt energy-saving motors and hydraulic systems to reduce energy consumption.
2, XCMG T7527A-18S Used Tower Crane the advantages of short-arm cranes make them stand out in hoisting operations within small and medium-sized construction sites and PC component factories.
Packing :
Under normal circumstances, we will put the machine into the packed wooden box and then transport the wooden box into a container.
Technology :
Max. lifting capacity | 18t |
Max.load moment | 752 kN·m |
Max. working radius | 70m |
Max, hook height (independent) | 50 m (estimated) |
Hoisting speed (max/min) | 0~100 m/min |
Luffing speed | 0~60 m/min |
Tower section dimension | 1.8×1.8×3 m (standard) |
Jib length | 70m |
Balance arm length | 12m |
Travel base width | 6m |
Power supply | 380V/50Hz |
Control system | Variable frequency drive (VFD) |
Wind resistance (operating) | ≤20.8 m/s 250 N/m2 |
Design wind pressure |

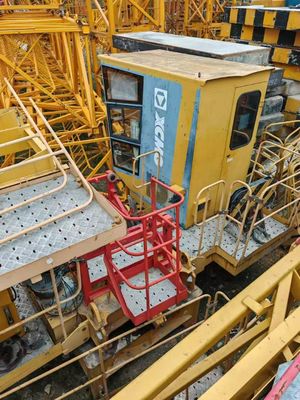

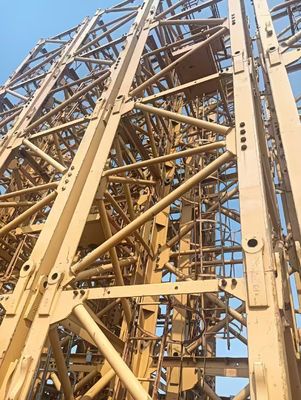

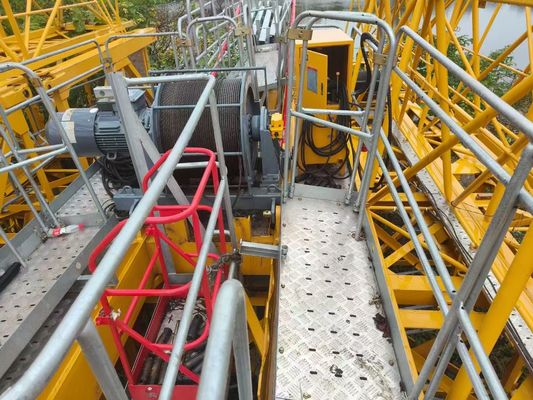

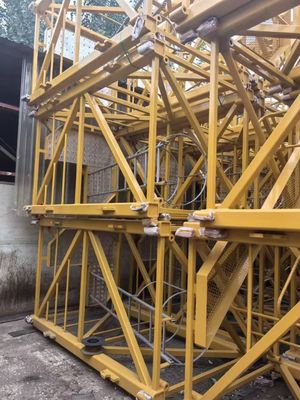

Picture Show :
