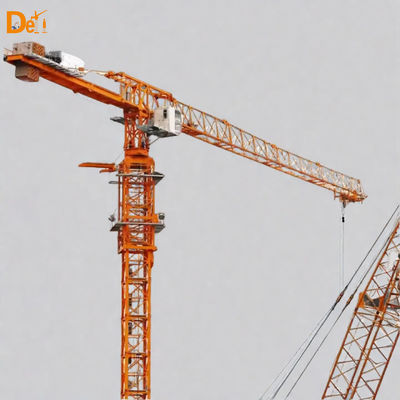

Zoomlion 6013-8 used Tower Crane Flat Top 60m Jib Length Tower Crane
Characteristics :
1, Zoomlion 6013-8 used Tower Crane the maximum working range is 60 meters, the maximum lifting capacity at the boom tip is 8 tons, and the maximum lifting moment is 128 ton-meters. The short boom length design (for example, when the boom length is 30 meters, the boom tip can lift up to 3.9 tons) is suitable for PC building construction.
2. Zoomlion 6013-8 used Tower Crane the boom is available in seven lengths: 60/55/50/45/40/35/30 meters. The tower body supports 1.6m bolt sections, 1.8m bolt sections and fishtail plate structures to meet different construction requirements.
3, Zoomlion 6013-8 used Tower Crane equipped with a tower crane safety monitoring system, it can detect the status of the hoisting mechanism in real time (such as the open gate status, temperature rise, brake wear, etc.) and support remote data management
Application :
1, Zoomlion 6013-8 used Tower CraneIt is widely used in the main structure construction of medium and high-rise residential buildings, commercial complexes and other buildings, such as the hoisting of steel bars, formwork and concrete components.
2, Zoomlion 6013-8 used Tower Crane It is suitable for interior climbing operations in narrow Spaces or high-rise buildings, such as the Jakarta Oasis Twin Towers project (the tallest building in Indonesia).
3, Zoomlion 6013-8 used Tower Crane It can be used for the hoisting of components of large-scale infrastructure such as factories, Bridges and DAMS.
Advantage:
1, Zoomlion 6013-8 used Tower Crane the full variable frequency speed regulation technology enhances the working speed, ensures neat rope arrangement during lifting and luffing, and extends the service life of the steel wire rope.
2, Zoomlion 6013-8 used Tower Crane Modular design and quick-installation platform reduce maintenance difficulty.
Packing :
Under normal circumstances, we will put the machine into the packed wooden box and then transport the wooden box into a container.
Technology :
| Parameter Cat- egory |
Parameter Value |
| Model identifi- cation |
6013-
8 |
| Arm length config- uration |
(m decreasing adiust-
30m~60rn (6mde |
| Maximum lifting weight |
8t |
| Boom tip lifting weight |
1.3t (at 60m amplitude) |
| Lifting torque |
(Nominal val-
128t·rn
le) |
| Independent height |
40.5m~46m |
| Attachment height |
Maximum 220m |
| Lifting speed |
0~100m/min |
| Luffing speed |
0~55m/min (Trolley) |
| Swing speed |
0~0.8r/min |
| Overall power |
≈38kW (380V ± 10%/50Hz electricity
Source) |
| Safety device |
Torque Limiter +Weight Limiter + Amplitude
Limit, etc. |

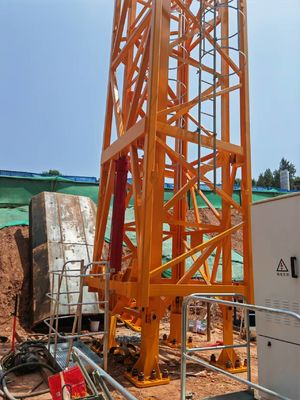

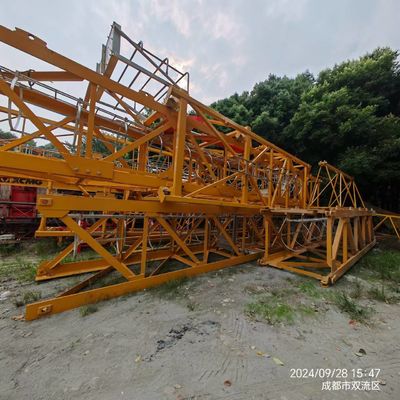

Picture Show:
