3.5ton mini Excavator Small Crawler Tailless Hook Machine Construction Projects
Characteristics :
1, 3.5ton Mni Excavator the fuselage width is usually ≤1.3 meters, supporting tailless rotation or 180° rotation radius 912, and can freely turn in narrow areas (such as courtyards, basements, orchards) . The rubber track design reduces ground damage, with a grounding ratio as low as 23.6KPa, making it suitable for hardened roads and farmlands.
2. 3.5ton Mni Excavator The turning radius of the machine body is extremely small (as low as 1.85 meters), and the tail does not exceed the width of the track, allowing for flexible construction at the base of the wall and beside the pipeline.
3, 3.5ton Mni Excavator It is equipped with a standard quick-change connector, allowing for quick switching of accessories such as buckets, breakers, rotary drilling RIGS, and wood grabbers. is suitable for various scenarios including earthwork, crushing, and loading.
Application :
1, 3.5ton Mni Excavator Trenching and fertilizing/planting trees and digging pits: Replace manual labor to complete deep digging and fertilizing in orchards and digging tree pits.
2, 3.5ton Mni Excavator Landscaping: Green belt renovation, sapling transplantation, river dredging.
3, 3.5ton Mni Excavator Demolition and crushing: Interior wall demolition, concrete pavement crushing.
Advantage:
3.5ton Mni Excavator the width of the body is usually less than 1 meter.It mostly adopts imported engines (such as Kubota and Yanmar ), which have low fuel consumption and strong power.
Packing :

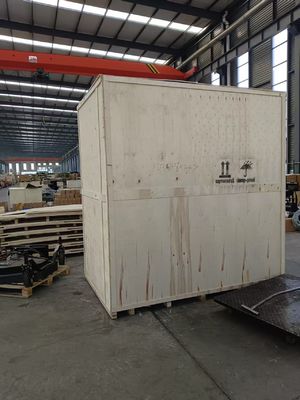

3.5ton Mni Excavator Under normal circumstances, we will put the machine into the packed wooden box and then transport the wooden box into a container.
Technology :
| Total length/transportation length(A): |
5029mm |
| Total width(B): |
1720mm |
| Upper width(D): |
1554mm |
| Total height (shed roof/cab roof)(C): |
2580mm |
| Standard track shoewidth(F): |
300mm |
| Minimumgroundclearance(H): |
319mm |
| Tail turnina radius(l): |
885mm |
| Track ground length(: |
1645mm |
| Track length(K): |
2150mm |
| Bulldozer Ground height(R): |
393mm |
| Bulldozer digging depth(T): |
461mm |
| Maximum digging height (a): |
4938mm |
| Maximum unloading height(b): |
3376mm |
| Maximum digging deth(c): |
3106mm |
| Maximum digging distance(d): |
5175mm |
| Minimum radius of turn(e): |
2634mm |
| Max.Height @ Min.Rotation Radius(f) |
3716m |
| Operating weight(KG): |
3500kg |
| Bucket capacity M^3: |
0.12m3 |
| Rated power: |
18.5KW/2200rpm |
| Turning speed : |
9r/min |
| Climbing ability : |
58% |
| Bucket digging force : |
30.4KN |
| Bucket rod digging force: |
18.2KN |

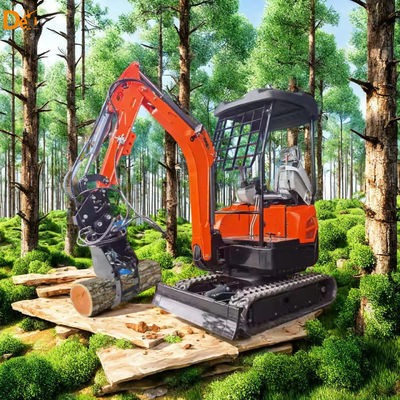

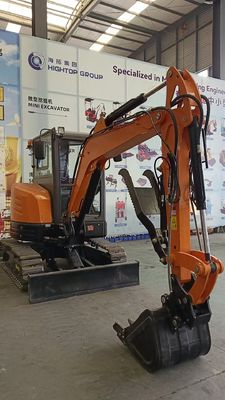

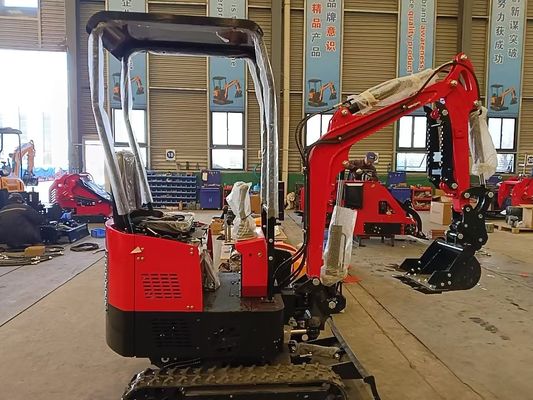

Picture Show :
