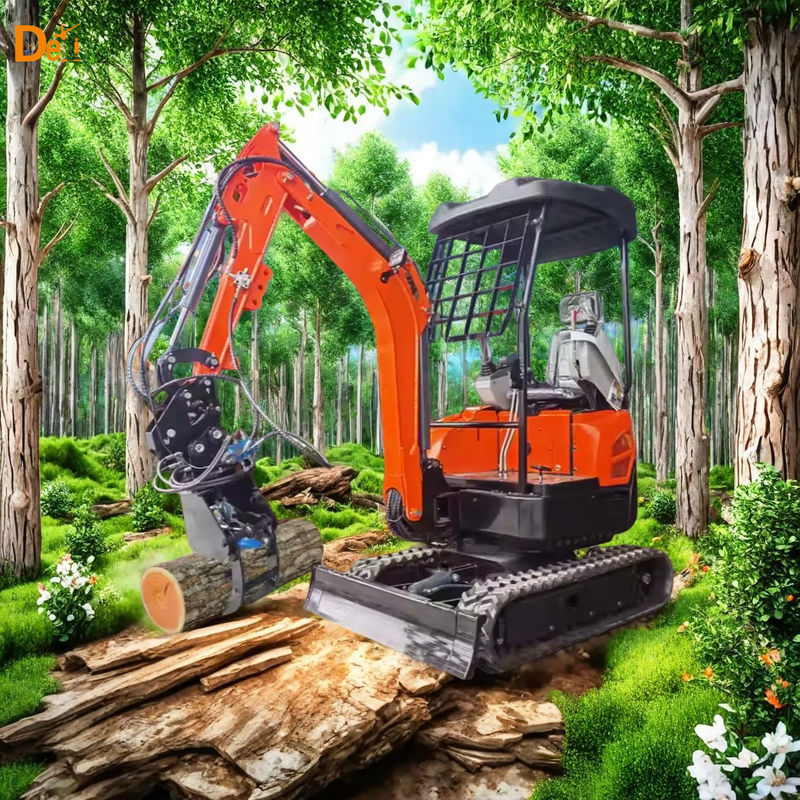

3Ton Mini Excavator Good Performance Hydraulic Crawler Digger
Characteristics :
1, 3Ton Mini Excavator the fuselage width is usually ≤1.3 meters, supporting tailless rotation or 180° rotation radius 912, and can freely turn in narrow areas (such as courtyards, basements, orchards) . The rubber track design reduces ground damage, with a grounding ratio as low as 23.6KPa, making it suitable for hardened roads and farmlands.
2. 3Ton Mini Excavator The turning radius of the machine body is extremely small (as low as 1.85 meters), and the tail does not exceed the width of the track, allowing for flexible construction at the base of the wall and beside the pipeline.
3, 3Ton Mini Excavator It is equipped with a standard quick-change connector, allowing for quick switching of accessories such as buckets, breakers, rotary drilling RIGS, and wood grabbers. is suitable for various scenarios including earthwork, crushing, and loading.
Application :
1, 3Ton Mini Excavator Trenching and fertilizing/planting trees and digging pits: Replace manual labor to complete deep digging and fertilizing in orchards and digging tree pits.
2, 3Ton Mini Excavator Landscaping: Green belt renovation, sapling transplantation, river dredging.
3, 3Ton Mini Excavator Demolition and crushing: Interior wall demolition, concrete pavement crushing.
Advantage:
3Ton Mini Excavator the width of the body is usually less than 1 meter.It mostly adopts imported engines (such as Kubota and Yanmar ), which have low fuel consumption and strong power.
Packing :
3Ton Mini Excavator Under normal circumstances, we will put the machine into the packed wooden box and then transport the wooden box into a container
Technology :
| Overall length/transport leng |
4365mm |
|
Quality of work |
3000KG |
| Totalwidth |
1338mm |
|
Bucket capacity M ^ 3 |
0.036 |
| Upper Width |
1354mm |
|
Rated power |
19KW/2250RPM |
| Total height (cab roof) |
2364mm |
|
|
Swing speedf |
10RMP |
| Standard track shoe width |
230mm |
|
Climbing ability |
30}$ |
| Gauge |
1090mm |
|
|
|
|
| |
|
Minimum ground clear-
ance |
197mm |
|
| |
Maximum excavation
height |
3397mm |
| Tail turning radius |
1265mm |
|
| Track grounding length |
1570mm |
|
Maximum unloading
height |
2200mm |
| Track length |
1926mm |
|
Maximum excavation
depth |
2620mm |
Ground clearance of
Dozer shovel |
|
|
245mm |
|
|
|
|
| |
Maximum digging distance |
4098mm |
| Dig depth of Dozer shovel |
|
300mm |
|
Minimum radius of gyration |
2097mm |
| |
Maximum height at minimum turning radius |
2781mm |
| |
|
|
|
|
|
|
| |
|
| |
|
|
|
| |
Main components
DL40H30H0-d10L-4TH3TT-
2YSYH2YSHY-3CGH3CHC
Main
valve -CGCGHCGCHC
Pressure 18Mpa |
| Engine |
Lyon 385 |
|
Three-cylinder di-
rect injection |
|
Rated power 19KW/2250
(Oil capacity 5.1L) |
|
| System flow 100L/min |
|

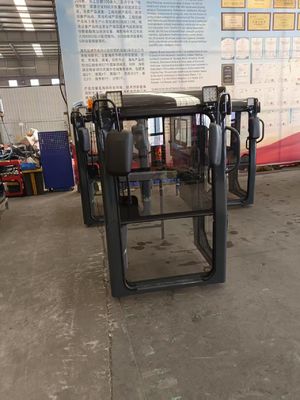

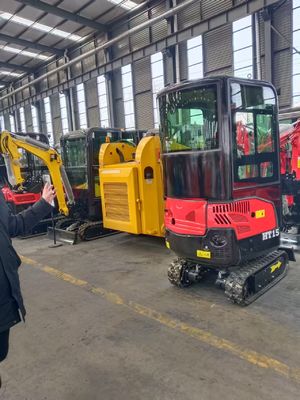

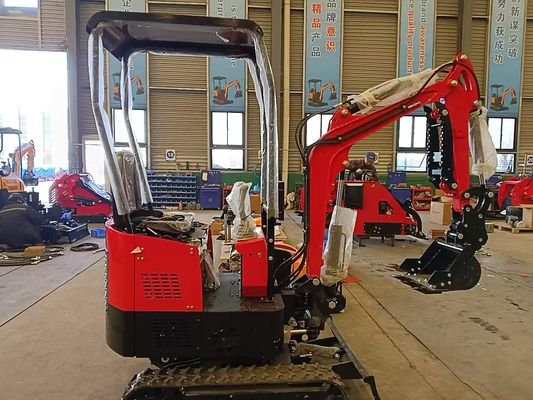

Picture Show :
