Produciton Name: | 1.5 Ton Mini Excavator New Crawler Digger Farm Mini Excavator Machine | Key Word: | 1.5 Ton Mini Excavator |
---|---|---|---|
Moq: | 1 | Model: | 1.5 Ton |
Quality: | Best | Appy To: | Farm Garden Orchard |
Fuction: | Compact And Convenient | Country: | China |
Highlight: | Convenient 1.5 Ton Small Excavator,Compact 1.5 Ton Small Excavator Machine,1.5 Ton Crawler Farm Miniature Digger |

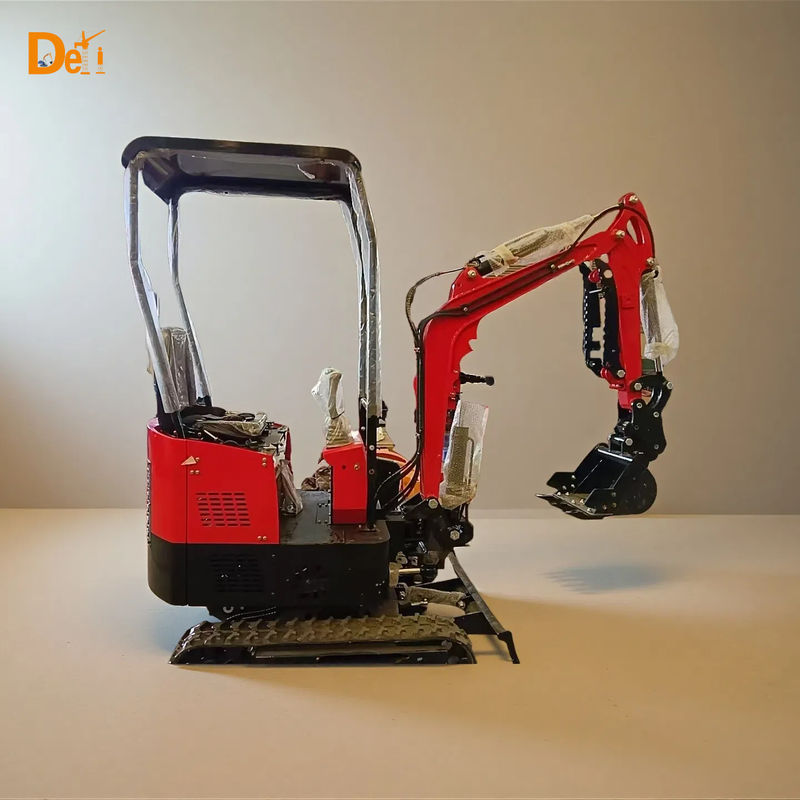

P1.5 Ton Mini Excavator New Crawler Digger Farm Mini Excavator Machine
Characteristics :
1.5 Ton Mini Excavator the body size is extremely small (common width ≤94cm, height ≤1.3m), supporting 360° tailless rotation 149, and can freely move through narrow Spaces such as door openings, elevators, and basements.
It is equipped with a standard quick-change connector, allowing for quick switching of attachments such as buckets, breakers, drills, and grippers, achieving multiple uses with one machine.
It is equipped with an air-cooled single-cylinder diesel engine (with a power of approximately 8.6kW), featuring low fuel consumption and support for electric start.
Application:
1,1.5 Ton Mini Excavator :Dig fertilizer ditches, fruit tree planting pits, weed and turn the soil 161117 to adapt to low-growing environments such as kiwifruit and vineyards.
2,1.5 Ton Mini Excavator:Indoor demolition and basement backfilling.
3,1.5 Ton Mini Excavator:Deep cultivation of greenhouses and construction of mine tunnels.

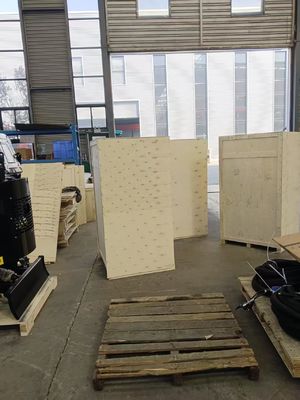

Packing :
Under normal circumstances, we put the machines in the packed wooden cases and then load them into containers for transportation
Advantage:
By matching different attachments, it can be used for multiple purposes with one machine, which is convenient and fast to use.
The manufacturing process is excellent, and all important parts are from well-known national brands.
Technology:
Wheel track | 935 | Digging height | 2585 |
Total track length | 1235 | Unloading height | 1810 |
Track ground length | 380 | Digging depth | 1735 |
Tail turning radius | 870 | Digging distance | 1030 |
Chassis width | 1000 | Turning radius | 2815 |
Track width | 175 | Height at minimum turning radius |
1390 |
Track height | 320 | Maximum lifting height of dozer shovel |
295 |
Seat to floor height | 2590 | Maximum depth of dozer shovel |
270 |
Seat to floor height | 1560 | ||
Total vehicle height | 2190 |
Operating weight | 1500 kg | |
Bucket capacity | 0.03m3 | |
Working device form | backhoe | |
Engine | Displacement | 0.719L |
Rated power/speed | 8.9kw/2200rpm 14.9kw/3600rpm |
|
Maximum torque/speed | 45NM/2800rpm | |
Speed and digging power | Upper travel speed | 2.4km/h |
Turning speed | 9rpm | |
Tope climbing abillity | 58% | |
Bucket digging force | 10.5KN | |
Bucket rod digging force | 7.2KN | |
Upper tractive force limit | 12.2KN | |
Ground specific voltage | 25.6kPa | |
Track material | Rubber |

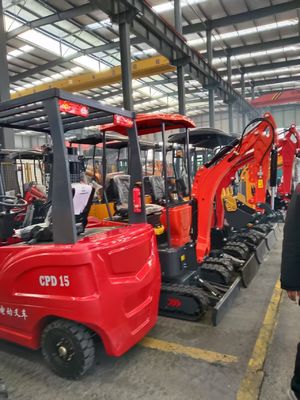

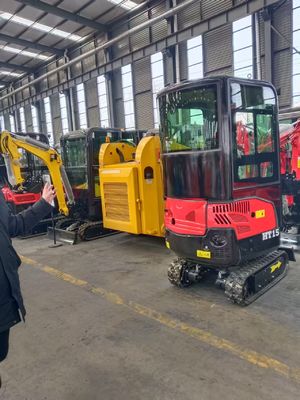

Picture Show:
