Product Name: | Small Crawler Hydraulic Digger Mini Excavator 1 Ton Agricultural | Keywords: | Mini Excavator 1 Ton |
---|---|---|---|
Transmission Type: | Hydraulic Excavator | Color: | Red, Yellow |
Use: | Farm Agricultural Digger Household Excavator | Application: | Engineering Construction,interior Demolition,agricultural Orchard,building Construction |
Highlight: | 1 Ton Small Excavation Equipment For Agricultural,Hydraulic Mini Digging Machine 1 Ton |
Small Crawler Hydraulic Digger Mini Excavator 1 Ton Agricultural
Characteristics:
1. The key components of mini excavators all come from developed countries. For instance, the main hydraulic pump is from Japan, while the main valve, rotary motor and traveling motor are all from Italy.
2. Renowned brand engines are selected to meet the emission requirements of the United States and Europe. The hydraulic pipes imported from Continental AG of Germany are selected and are not prone to leakage.
3. A 100kg counterweight has been added to the rear of the machine, making the mini excavator work more stably and safely. The mini excavator is equipped with a pressure reducing valve device to make the machine easier to start.
4. The structural components of the machine are processed by the Japanese Komatsu supporting manufacturer. The mini excavator as a whole undergoes sandblasting, acid washing, phosphating and spraying treatments, which not only enhances the adhesion of the coating molecules, but also makes it more durable, smoother and less prone to rust.
Application:

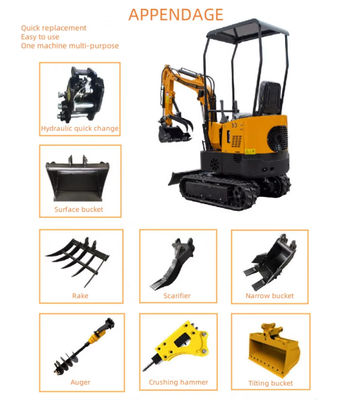

The attachments can be replaced according to different usage scenarios and are mainly used in engineering construction, indoor demolition, agricultural orchards, and building construction.
Advantage:
1. By matching different attachments, it can be used for multiple purposes with one machine, which is convenient and fast to use.
2. The manufacturing process is excellent, and all important parts are from well-known national brands.
Specification:
Overall Size(mm) | Performance Parameter | ||
Total length/transport length(A) | 1230 | Operating weight | 1000kg |
Track ground length(J) | 132 | Bucket capacity | 0.025m3 |
Track length(K) | 320 | Rated power | 8.2KW/3600r/min |
Chassis width | 896 | Emission | 6.8ml/r |
Track width(F) | 180 | Travel speed | 1.5km/h |
Track gauge(G) | 830-1000 | Working Range(mm) | |
Min.ground clearance(H) | 380 | Digging height(a) | 2610 |
Tail turning radius(I) | 784 | Unloading height(b) | 1850 |
Bucket width | 380 | Digging depth(c) | 1650 |
Digging distance(d) | 1375 | ||
Turning radius(e) | 2850 | ||
Height at minimum turning radius(f) | 1330 | ||
Maximum lifting height of dozer shovel | 345 | ||
Maximum digging depth of dozer shovel | 255 |
Packing :
Under normal circumstances, we would put the machine into the pre-packed wooden box and then place the wooden box into the container.

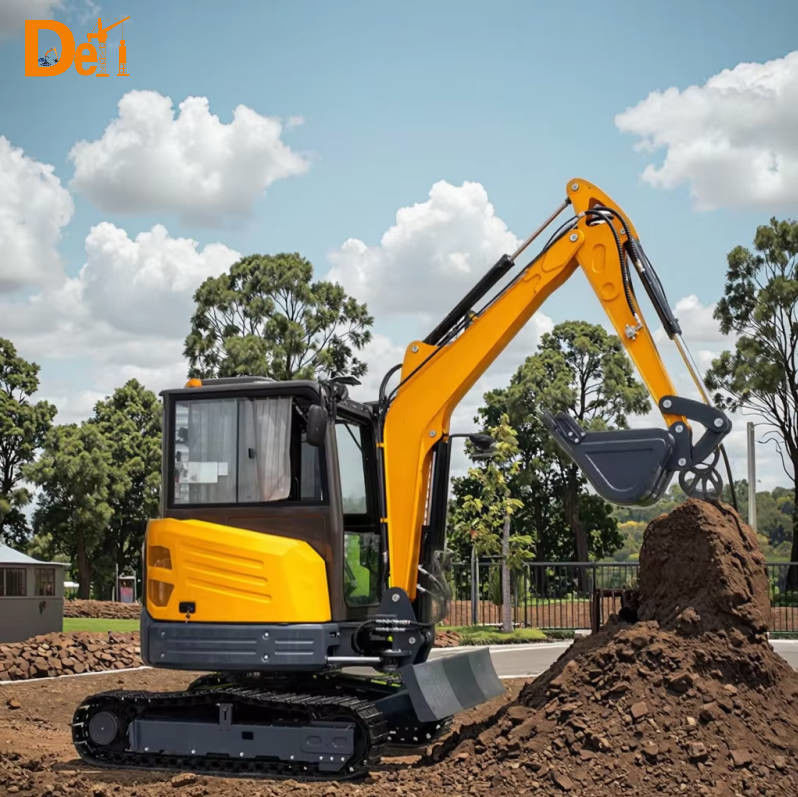

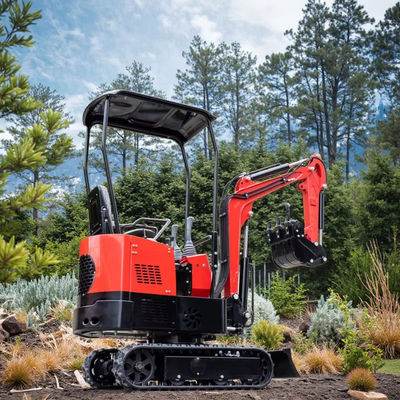

Picture Show:
